Job Monitor

This page allows you to submit new jobs and monitor your existing jobs.

Job Overview

The job management interface displays your current and past jobs in a table format with the following columns:

• Job ID: Unique identifier for your Slurm job.
• Job Name: Name of your job (specified at submission time).
• Partition: The Slurm partition where the job is running.
• Status: Current job status (PENDING, RUNNING, COMPLETED, FAILED, etc.).
• Elapsed: Time elapsed since the job started.
• Time Limit: Maximum allowed runtime for the job.
• Node Count: Number of nodes allocated to the job.
• Cores: Number of CPU cores allocated to the job.
• Memory: Amount of memory allocated to the job.
• Operations: Buttons to perform actions on the job (view details, cancel, etc.).

Job Details

Click on a job ID to view detailed information about the job, including:

• Full Slurm job information
• Standard output and error logs
• Job script used for submission
• Resource utilization graphs (if available)

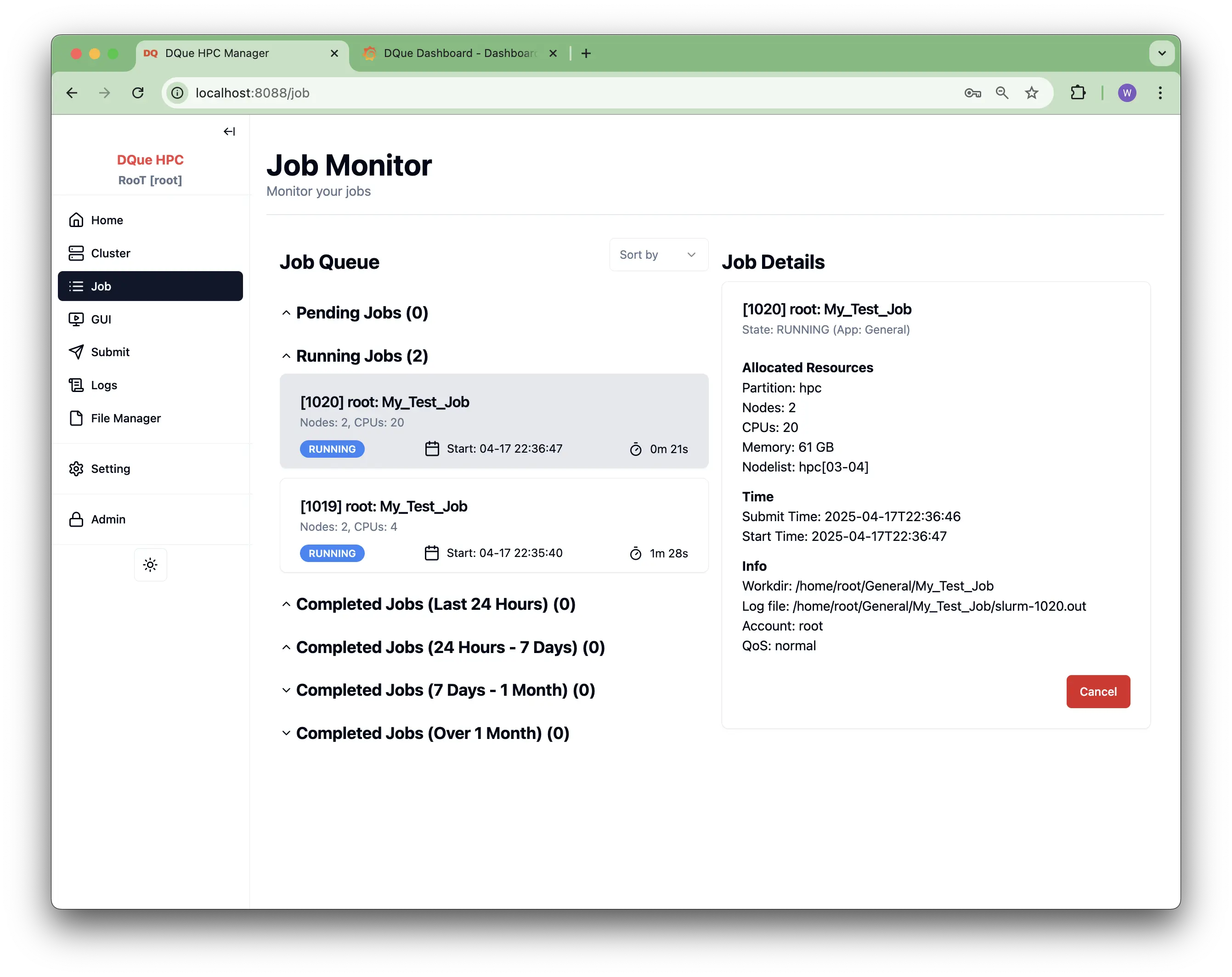

Job Queue Sections

The main area lists jobs categorized by their status:

• Pending Jobs: Jobs waiting to be scheduled and run.
• Running Jobs: Jobs currently executing on the cluster. Each running job entry shows:
  • Job ID, username, and job name (e.g., [1020] root: My_Test_Job).
  • Requested resources (Nodes, CPUs).
  • Job status (RUNNING).
  • Start time.
  • Elapsed run time.
• Completed Jobs (Last 24 Hours / 24 Hours - 7 Days / etc.): Sections listing recently completed jobs, grouped by time frame.

Clicking on a job in any section will display its details in the panel on the right.

Job Details Panel

When a job is selected from the queue, this panel shows comprehensive information:

• Job ID, Username, Job Name, State: Basic identification and current status.
• Allocated Resources:
  • Partition: The Slurm partition the job is running in.
  • Nodes: Number of nodes allocated.
  • CPUs: Number of CPU cores allocated.
  • Memory: Amount of memory allocated.
  • Nodelist: Specific nodes allocated to the job.
• Time:
  • Submit Time: When the job was submitted.
  • Start Time: When the job began execution.
• Info:
  • Workdir: The working directory for the job.
  • Log file: Path to the Slurm output/log file.
  • Account: The account associated with the job.
  • QoS: Quality of Service level applied.
• Cancel Button: Allows you to terminate a selected running or pending job.

Sorting

A “Sort by” dropdown (though seemingly inactive in the screenshot) might allow sorting the job lists based on different criteria in future versions.
